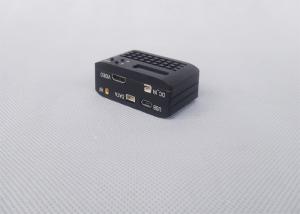

8MHz 2K COFDM Digital Video Transmitter Bi Directional Audio

Brand Name : Huanuo

Model Number : HN-730

Certification : CE/FCC/ROHS

Place of Origin : China

MOQ : 1pcs

Price : Negotiation

Payment Terms : T/T

Supply Ability : 500 pieces per month

Delivery Time : 1~2 working days

Packaging Details : Professional carton box package

Channel Bandwidth : 8MHz

Modulation : COFDM 2K

Encryption : 128bit AES

Audio : bi directional audio

Product name : cofdm wireless video audio transmitter

Frequency : custom

Contact Now

8MHz 2K COFDM Digital Video Transmitter Bi Directional Audio

Product Introduction:

HN-730 is a Frequency Division Duplex transceiver designed for use in long-range un-manned vehicles,manned vehicles,unmanned boat and ground stations, using COFDM multi carrier modulation and demodulation technology supporting non line of sight range (NLOS) transmission, supports narrow band (1MHz/2MHZ), low latency, high sensitivity long range transmission applications, and uses transparent IP data interface to provide a balanced and stable high-speed data rate uplink ( 30 Mbit/s) and downlink( 30 Mbit/s), highly integrated embedded design,super linear digital predistortion (Digital Predistortion) RF design,improve your reliability in non-line-of-sight and complex environments, enhance building penetration,and provide law enforcement

Product features:

  • Using advanced modulation technology, with excellent anti-interference ability.
  • Transmit one channel video signal (HDMI/SDI/LAN) and two channels serial data.
  • The maximum transmission rate can reach 25Mbps.
  • Support point-to-point, point to multi point and other networking modes.
  • Small size, light weight, low power consumption, suitable for all kinds of unmanned equipment applications.

Technical parameters

Model HN-730
Working voltage DC 6~17V
TX output frequency

300MHz～860MHz/

1.1G~2.5GHZ(option)

Stepping 1MHz
RX input frequency

300MHz～860MHz/

1.1G~2.5GHZ(option)

Stepping 1MHz
Channel bandwidth 1/2/4/8MHz
Output Power

30dbm(can customized),

Step 1 dBm
Audio Bi-directional audio,push to talk
Encryption and decryption 128bit AES(Dynamic adjustable key)
Modulation and demodulation COFDM 2K
Data Rate 2x30Mbit/s_RJ45 115200bps_RS232
Input interface HDMI
Dimension 180*54*30
Weight 227g

Applications:

Widely application for UAV system, high speed railway, fire fighting, security, intelligence control and other complex environments.
